공통 레이아웃, tiles 사용하기

앞서 MVC 패턴으로 db connecting 후 화면에 값까지 띄워봤다.

중복되는 영역들을 관리하기 위한 공통레이아웃, tiles를 설정해보자.





pom.xml

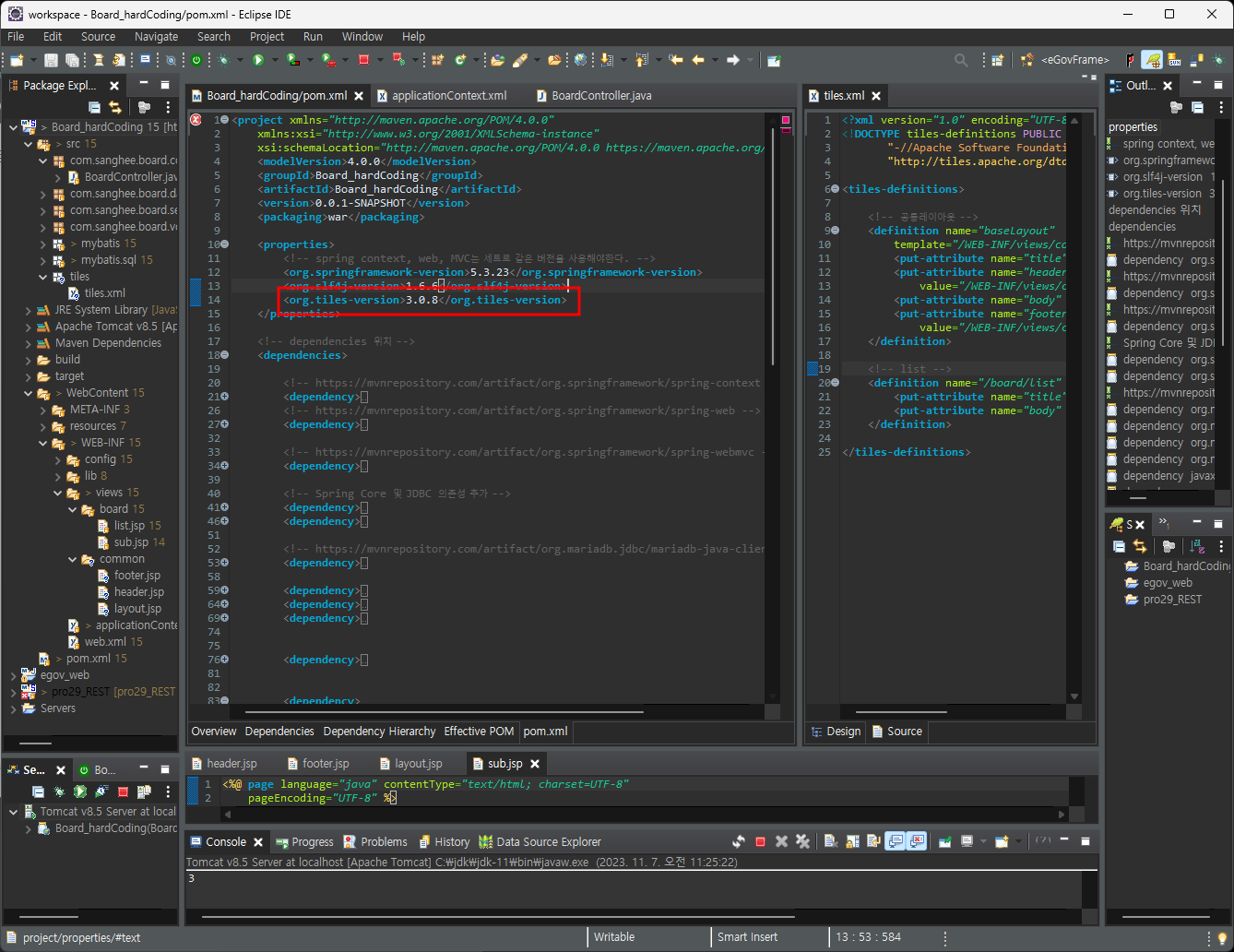

tiles version을 맞추기위해 변수를 설정 한뒤 core, jsp, servlet을 추가한다.

<org.tiles-version>3.0.8</org.tiles-version>

<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-core</artifactId>
			<version>${org.tiles-version}</version>
		</dependency>
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-jsp</artifactId>
			<version>${org.tiles-version}</version>
		</dependency>
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-servlet</artifactId>
			<version>${org.tiles-version}</version>
		</dependency>

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>Board_hardCoding</groupId>
	<artifactId>Board_hardCoding</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>war</packaging>

	<properties>
		<!-- spring context, web, MVC는 세트로 같은 버전을 사용해야한다. -->
		<org.springframework-version>5.3.23</org.springframework-version>
		<org.slf4j-version>1.6.6</org.slf4j-version>
		<org.tiles-version>3.0.8</org.tiles-version>
	</properties>

	<!-- dependencies 위치 -->
	<dependencies>

		<!-- https://mvnrepository.com/artifact/org.springframework/spring-context -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.springframework/spring-web -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- Spring Core 및 JDBC 의존성 추가 -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.mariadb.jdbc/mariadb-java-client -->
		<dependency>
			<groupId>org.mariadb.jdbc</groupId>
			<artifactId>mariadb-java-client</artifactId>
			<version>3.1.4</version>
		</dependency>

		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.5.10</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>2.0.7</version>
		</dependency>
		<dependency>
			<groupId>org.mariadb.jdbc</groupId>
			<artifactId>mariadb-java-client</artifactId>
			<version>3.0.7</version>
		</dependency>


		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>


		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-core</artifactId>
			<version>${org.tiles-version}</version>
		</dependency>
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-jsp</artifactId>
			<version>${org.tiles-version}</version>
		</dependency>
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-servlet</artifactId>
			<version>${org.tiles-version}</version>
		</dependency>


		<!-- SLF4J: Failed to load class "org.slf4j.impl.StaticLoggerBinder". -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${org.slf4j-version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>


	</dependencies>

	<build>
		<sourceDirectory>src</sourceDirectory>
		<plugins>
			<plugin>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.8.1</version>
				<configuration>
					<release>11</release>
				</configuration>
			</plugin>
			<plugin>
				<artifactId>maven-war-plugin</artifactId>
				<version>3.2.3</version>
				<configuration>
					<warSourceDirectory>WebContent</warSourceDirectory>
				</configuration>
			</plugin>
		</plugins>
	</build>
</project>

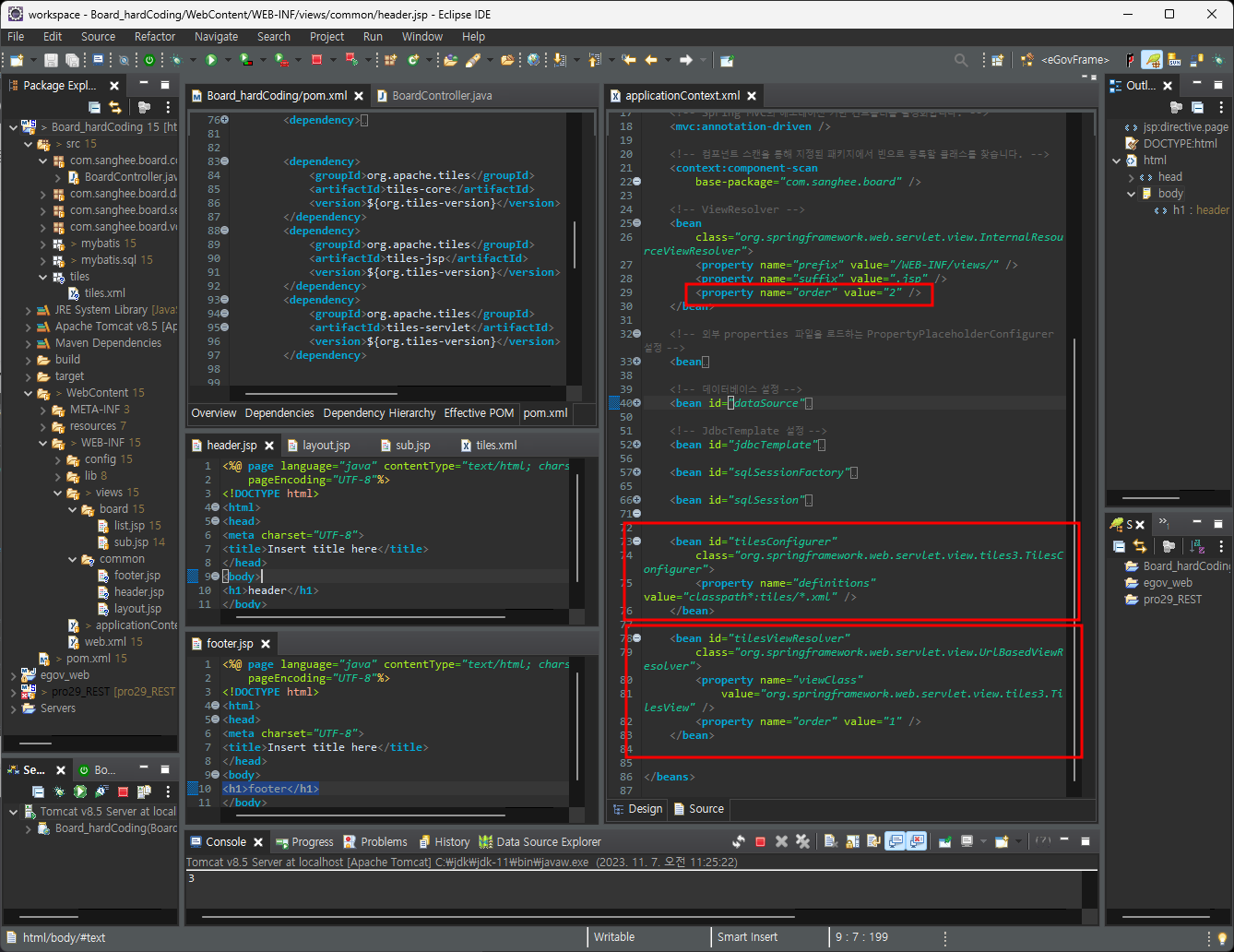

applicationContext.xml에서

tilesConfigurer, tiles 설정 파일을 연결하고

기존 view resolver의 order를 2로, tilesViewResolver를 order1로 설정해 먼저 거치도록 한다.

<bean id="tilesConfigurer"
		class="org.springframework.web.servlet.view.tiles3.TilesConfigurer">
		<property name="definitions" value="classpath*:tiles/*.xml" />
	</bean>

	<bean id="tilesViewResolver"
		class="org.springframework.web.servlet.view.UrlBasedViewResolver">
		<property name="viewClass"
			value="org.springframework.web.servlet.view.tiles3.TilesView" />
		<property name="order" value="1" />
	</bean>

<!-- ViewResolver -->
	<bean
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/views/" />
		<property name="suffix" value=".jsp" />
		<property name="order" value="2" />
	</bean>

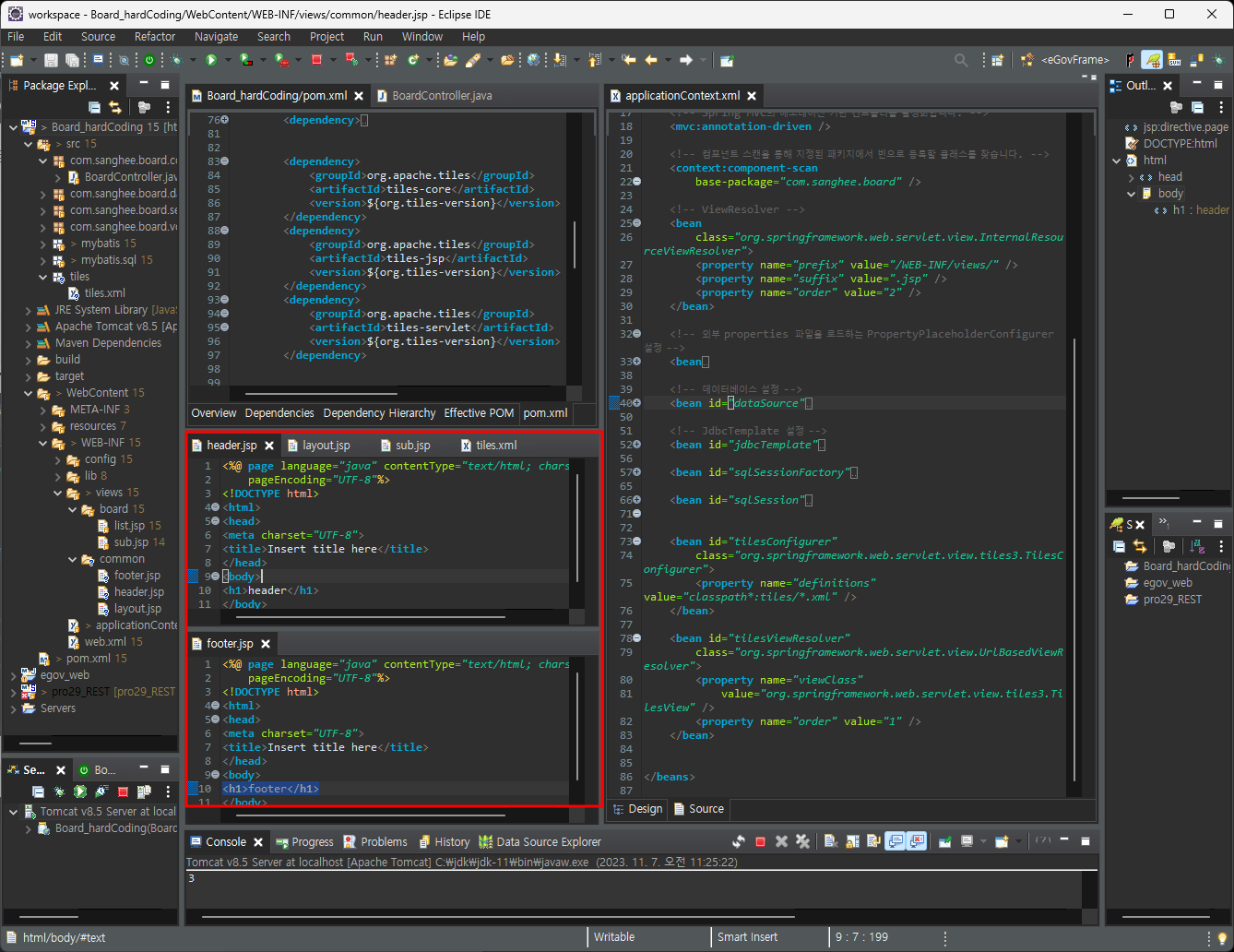

작업에 앞서 header, footer jsp를 미리 만들어두고,











작성했던 applicationContext.xml에 정의한 경로에 tiles설정 파일을 생성한다.

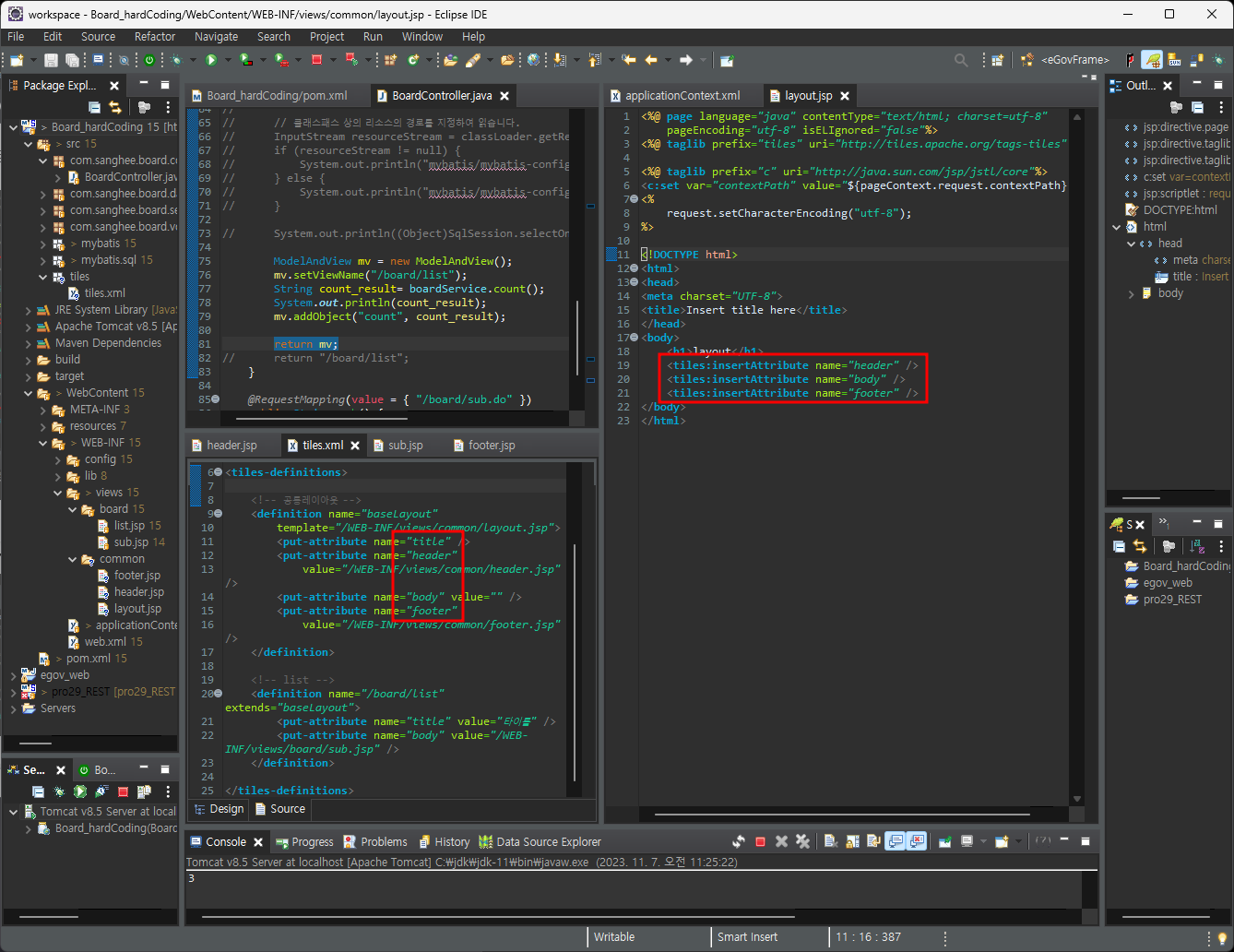

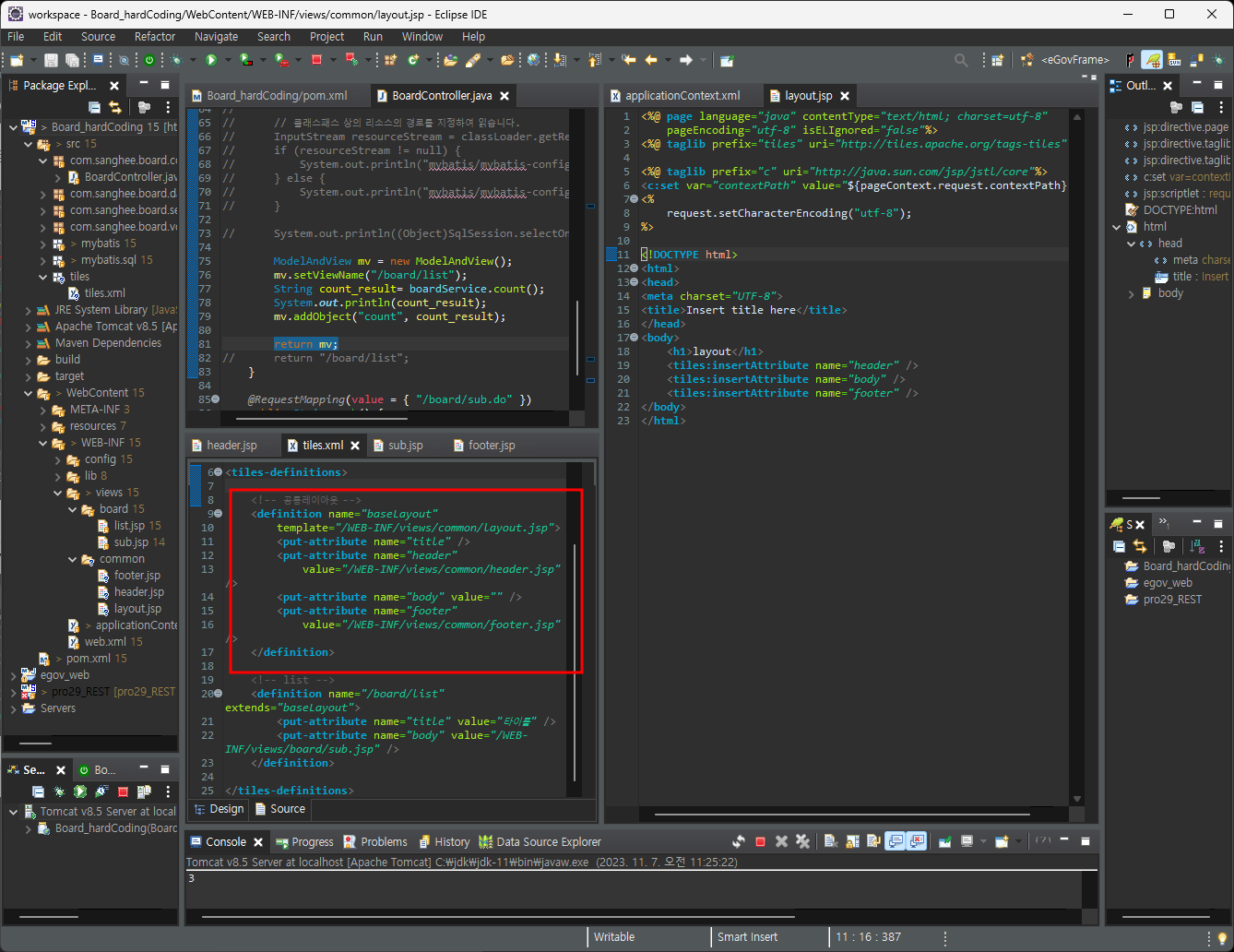

공통레이아웃을 정의하고, layout.jsp를 작성한다.

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE tiles-definitions PUBLIC
       "-//Apache Software Foundation//DTD Tiles Configuration 2.0//EN"
       "http://tiles.apache.org/dtds/tiles-config_2_0.dtd">

<tiles-definitions>

	<!-- 공통레이아웃 -->
	<definition name="baseLayout"
		template="/WEB-INF/views/common/layout.jsp">
		<put-attribute name="title" />
		<put-attribute name="header"
			value="/WEB-INF/views/common/header.jsp" />
		<put-attribute name="body" value="" />
		<put-attribute name="footer"
			value="/WEB-INF/views/common/footer.jsp" />
	</definition>
</tiles-definitions>

<%@ page language="java" contentType="text/html; charset=utf-8"
	pageEncoding="utf-8" isELIgnored="false"%>
<%@ taglib prefix="tiles" uri="http://tiles.apache.org/tags-tiles"  %>

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<c:set var="contextPath" value="${pageContext.request.contextPath}" />
<%
	request.setCharacterEncoding("utf-8");
%>

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<link href="${contextPath}/resources/css/style.css" rel="stylesheet"
	type="text/css" media="screen">
<title><tiles:insertAttribute name="title" /></title>
</head>
<body>
	<h1>layout</h1>
	<tiles:insertAttribute name="header" />
	<tiles:insertAttribute name="body" />
	<tiles:insertAttribute name="footer" />
</body>
</html>







controller에서 return하는 view이름을 복사하여 해당페이지에 필요한 파일/정보를 지정한다.

<!-- list -->
	<definition name="/board/list" extends="baseLayout">
		<put-attribute name="title" value="타이틀" />
		<put-attribute name="body" value="/WEB-INF/views/board/sub.jsp" />
	</definition>

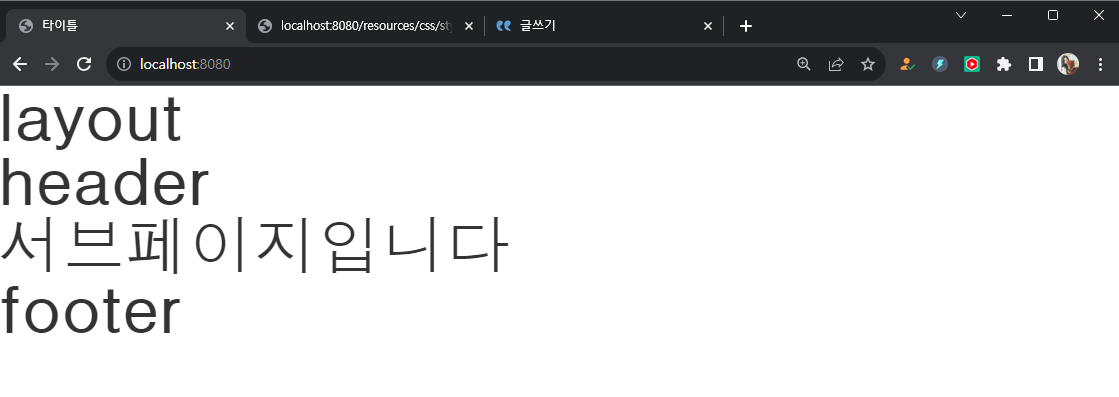

완료
